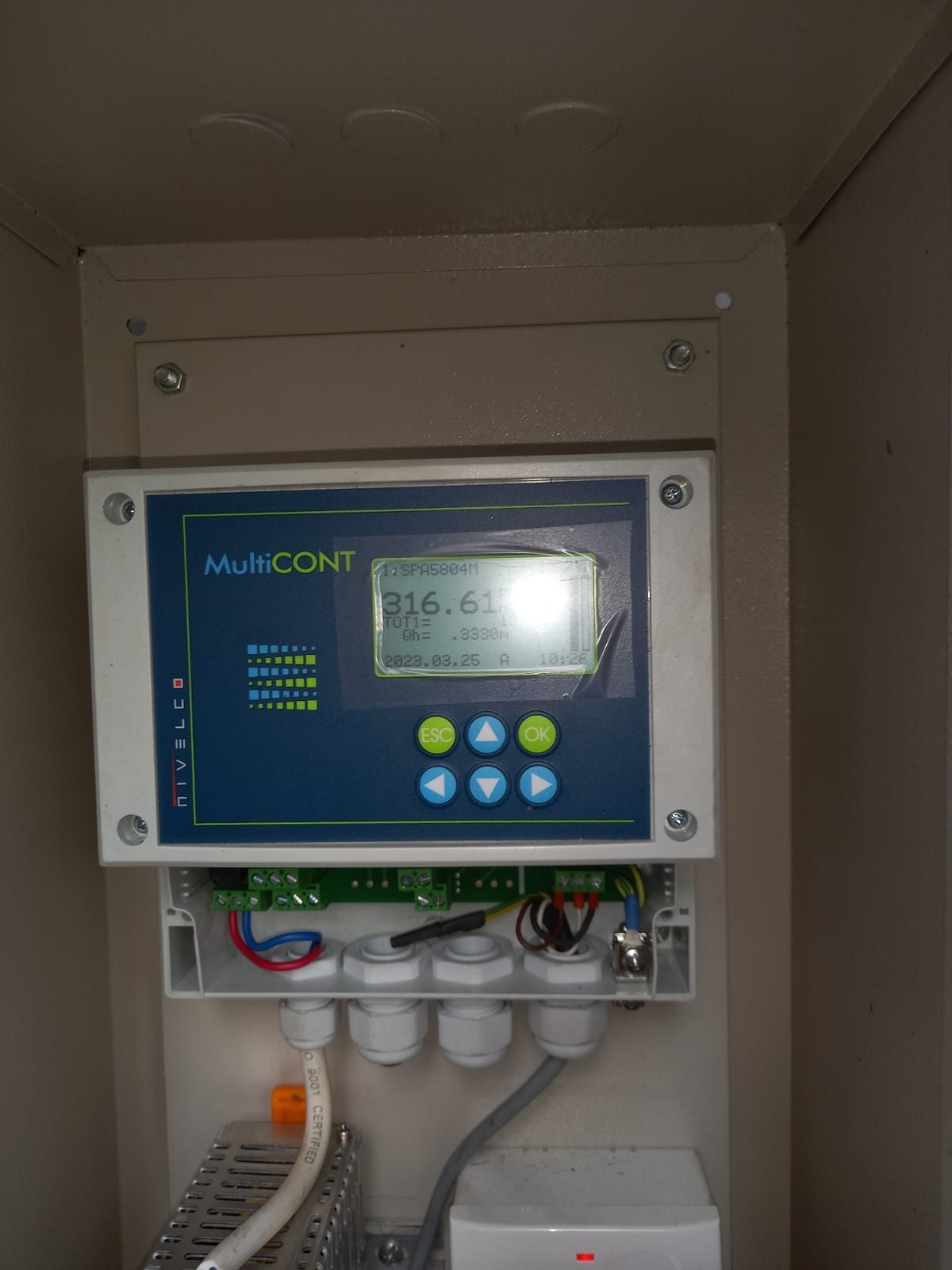

Ultrasonic Open Channel Flow Meter

Model: Multicont

Brand	Nivelco
Origin	Hungry
Type	Ultrasonic
Sensor	Easy TREK/ Echo TREK
Measuring Range	0.94~6627 m3 /hr
Fluid Temp	0~80 deg C (Standard)
Measurement	Level & Volume
Accuracy	±1%
Monitor Protection	IP-65
Sensor Protection	IP-68
Monitor	Standard Wall Mounted
Case Material	polycarbonate, Flame resistant
Communication	4~20 mA, (RS485 Optional)
Power Supply	220 VAC,50 HZ

Information:

Open Channel Flow Meters measure liquid flow through the open drain or Channel. A transducer makes an ultrasonic wave sent through media and then calculates the return sound wave respect time.

Applications:

• Level measurement of liquids, wastewater, aggressive chemicals, and slurries
• Agriculture
• Construction materials
• Chemical industry
• Food and beverage
• Oil industry
• Paper mill
• Water/wastewater industry
